Ravn XS - Modern Sauna
Introducing the RAVN XS: Compact Scandinavian Design with a Modern Silhouette
Experience elevated outdoor relaxation with the RAVN XS. Designed with the same modern, box-style Scandinavian architecture as the RAVN series, the RAVN XS delivers an authentic sauna experience in an ultra-compact footprint. Comfortably accommodating 1–2 bathers, it is ideal for patios, urban backyards, and smaller outdoor spaces where efficiency and design matter.
Premium Construction & Materials
The RAVN XS is crafted for long-term outdoor performance and visual refinement.
Thermowood Construction – Thermowood is created by heat treating Scandinavian softwood to temperatures ranging from 180–230 °C in special chamber kilns for up to 96 hours. Steam is used as a protective gas and helps prevent the wood from splitting or becoming damaged during treatment.
Learn more about Thermowood in our FAQ section.
Thermowood’s Characteristics & Qualities – This heat-treatment process alters the timber’s internal structure, resulting in several key performance benefits:
Dimensionally Stable – Deep moisture and resin removal significantly reduces swelling, cracking, and shrinkage. Thermowood does not secrete sap or resin, even at high sauna temperatures.
Environmentally Friendly – Produced from PEFC-certified Scandinavian forests using only heat and steam, with no chemicals or additives.
Resistance to Rot and Fungi – The breakdown of hemicellulose removes nutrients required for rot and fungal growth.
Increased Longevity – Heat treatment extends the lifespan of the wood, helping ensure your sauna performs for decades.
Improved Insulation – Increased porosity enhances the wood’s natural insulating properties.
- Robust Wall Construction: Built with 42Â mm (1.65") thick solid wood walls to ensure excellent heat retention and structural durability.
- Durable Roofing: Finished with PVC/EPDM roofing for dependable weather protection. Roofing is offered as an add-on, or customers may apply their own custom waterproofing solution. (sold separately)Â
Ergonomic Interior & Efficient Volume
The RAVN XS offers a compact yet comfortable sauna environment with an internal volume of approximately ~2.0 m³ (~71 ft³). The interior layout is optimized for efficient heating and practical seating.

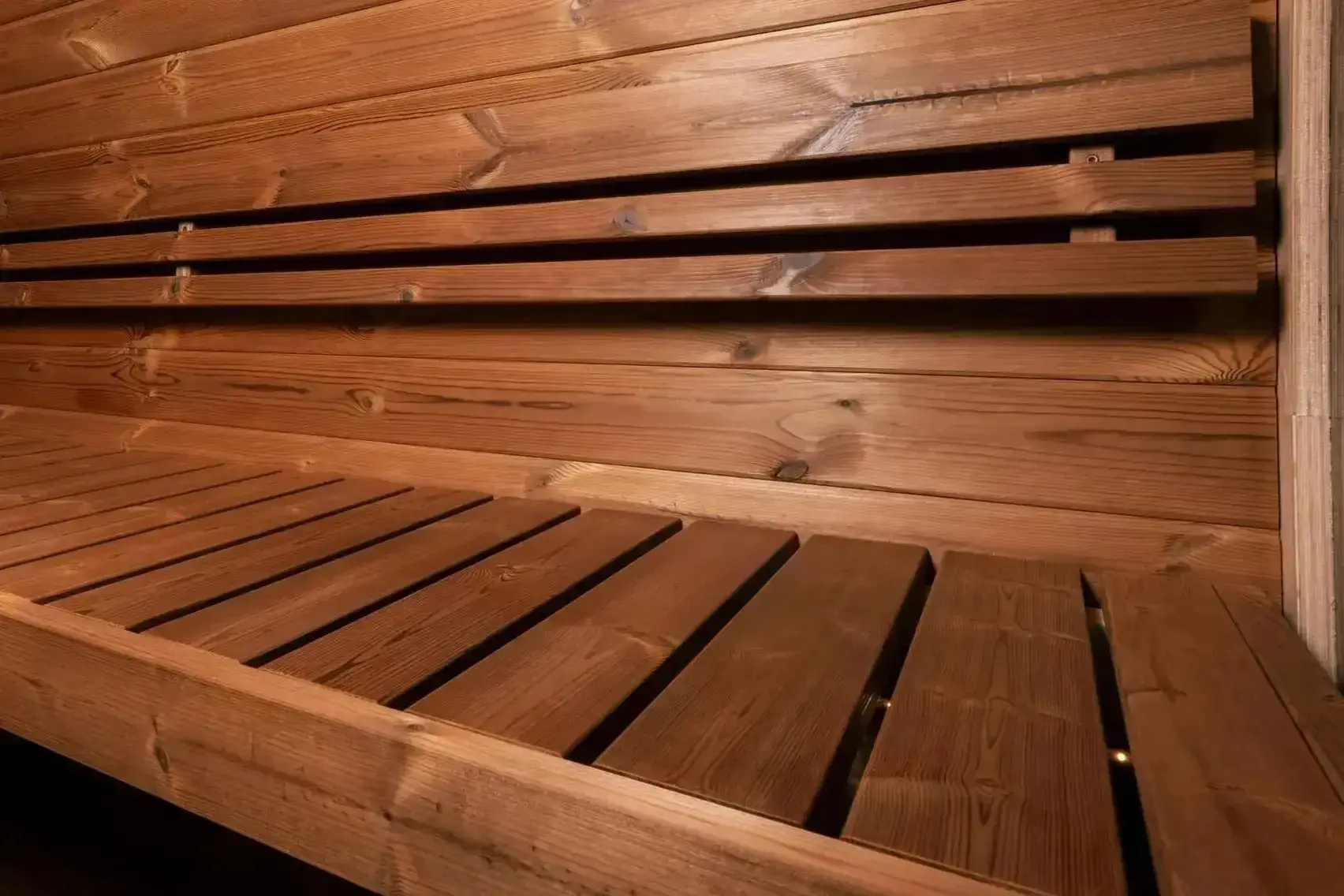

- Upper Bench: Bench depth of approximately 450Â mm (17.7") for comfortable seating.
- Lower Bench/Step: Step/secondary bench depth of approximately 334Â mm (13.1") for easy access.
- Tempered Glass Front: Tempered glass door (192 cm × 69 cm / 75.6" × 27.2") allows natural light while maintaining thermal efficiency.
Optimized Dimensions for Compact Comfort
The RAVN XS is designed to fit seamlessly into tight outdoor spaces while delivering a true Scandinavian sauna experience.
- Overall External Dimensions (W × D × H): 1378 mm × 1105 mm × 2135 mm (54.3" × 43.5" × 84.1")
- Approx. Interior Dimensions (W × D × H): 1258 mm × 795 mm × 1895 mm (49.5" × 31.3" × 74.6")
Easy Assembly & Logistics
The RAVN XS is delivered as a complete DIY sauna kit, engineered for efficient shipping and straightforward on-site assembly.
- Kit Delivery: Flat-packed for efficient transport and designed for straightforward assembly.
- Shipping Weight: Approximately ~440Â kg (~970Â lbs).
- Packaging Dimensions: 2100 × 1200 × 550 mm (82.7" × 47.2" × 21.7").
Technical Specifications Summary
| Model Name | RAVN XS |
| Capacity | 1–2 Persons |
| External Dimensions | 1378 mm × 1105 mm × 2135 mm (54.3" × 43.5" × 84.1") |
| Wall Thickness | 42Â mm (1.65") |
| Interior Volume | ~2.0 m³ (~71 ft³) |
| Door Dimensions | 192 × 69 cm (75.6" × 27.2") |
| Roof Material | PVC / EPDM |
The RAVN XS proves that exceptional Scandinavian sauna design doesn’t require a large footprint—just thoughtful engineering.
